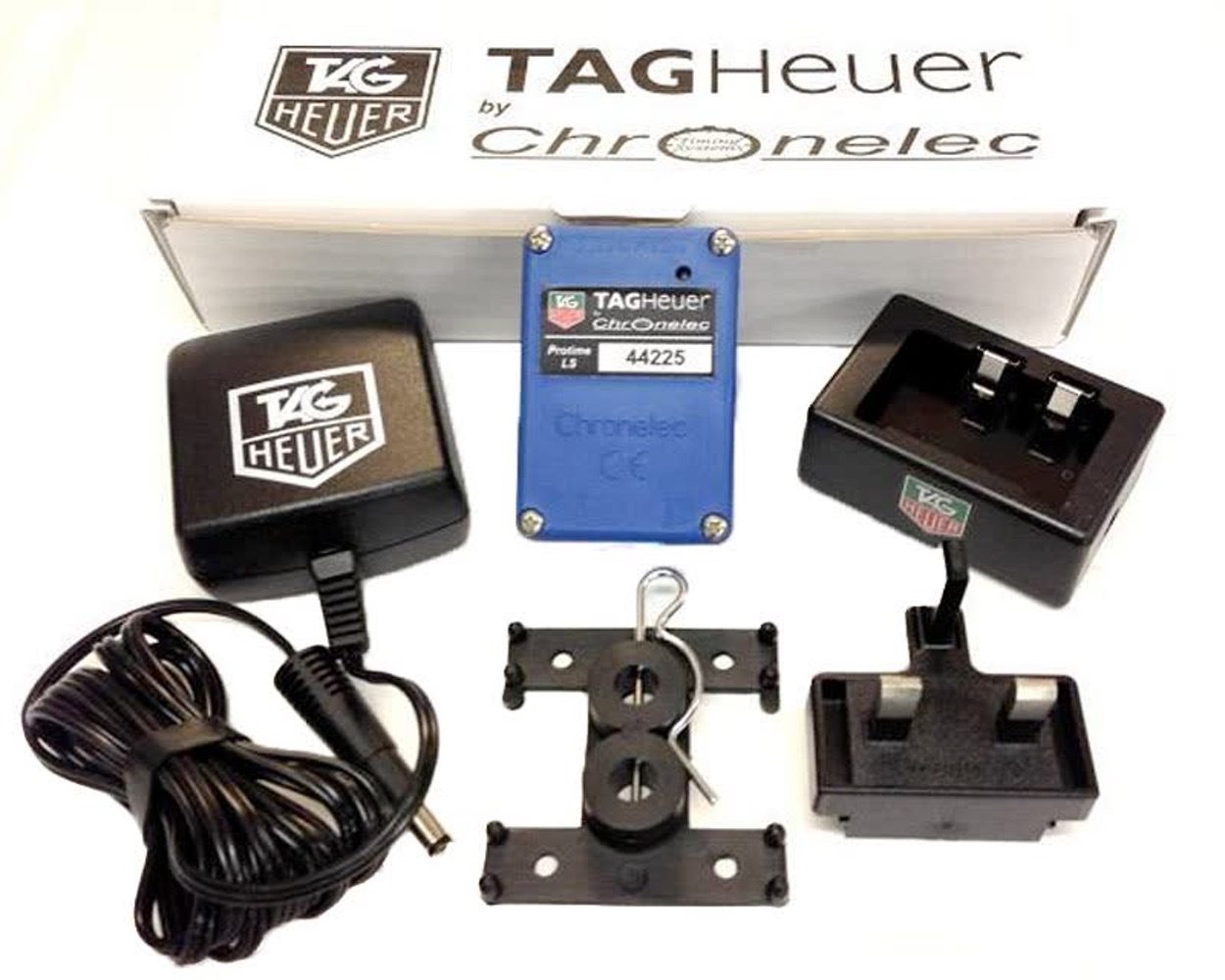

LS Transponder Pack (Replaces Tag Transponder)

FFSA & UFOLEP approved

The transponder protime LS is recommended for cross (motocross, quad, kartcross ...) and karting competition.

When the transponder is in the charger (charger off), standby is automatic, which ensures an autonomy of several months.One load per year is required to maintain the transponder in a state.

A tricolor LED indicates the charging status and range.

Power supply
battery life of 5 days in full use.
NiMH battery.

Technical characteristics

Max detection speed:200 km / h (124.3 mph)
Max detection height:2.80 m(9 ft)
Operating temperature range:-20 C -> 70 C(-4 F 6> + 158 F)
Dimensions:75 x 42 x 21 mm(2.95x 1.65x 0.82)
Weight:80 g(2.8 oz)

Bright indications:

Autonomy is shown from 1 to 4LED flashing every 10 seconds:

4 green flashing for a load of 75 to 100% battery (> = 7.5 days)
3 green flashing for a load of 50 to 75% of battery life (> = 5 days)
2 green flashing for a load of 25 to 50% of battery life (> = 2.5 days)
1 flashing green for a load of 10 to 25% of battery life (> = 1 day)
1 flashing red for a load of 0-10% burn (<24 hours)

The LED is red when the tranponsdeur is charging and green when charging is complete.

The information level of charge is sent to the decoder when the transponder passes over the loop.
